FastFix Electric SPD surge protection installation in a distribution board.

SPD surge protection

SPD Surge Protection Installation in Johor Bahru

Help reduce damage risk from transient overvoltage with a correctly selected and installed surge protective device for a suitable existing DB.

Single-phase SPDRM500
Three-phase SPDRM700
Materials + installation per package. Existing DB suitability is subject to inspection.
WhatsApp for QuoteView Package Details

What does an SPD actually do?

An SPD responds to a short-duration voltage surge, limits the voltage reaching the installation and diverts surge current toward earth. This helps reduce damage risk to connected electrical and electronic equipment.

Illustration of how an SPD works with the distribution board and earthing path during a voltage surge.

  1. A transient surge reaches the installation

    Short-duration overvoltage may result from lightning activity or electrical switching.

  2. The SPD limits the transient voltage

    The device reacts quickly, clamps the voltage and creates a protective path for surge current.

  3. Surge current is diverted toward earth

    Excess surge current is directed through the protective path until the event passes.

Effective earthing, correct device selection and short connection paths are important to SPD performance.

Choose the SPD package for your supply.

Single-phase and three-phase installations use different packages. If you are unsure, send a clear DB photo through WhatsApp and FastFix will help confirm the supply phase.

Single-phase SPD

Single-phase SPD surge protection package

RM500 / package

For a suitable single-phase DB. Standard SPD materials, installation labour and basic operational testing included.

WhatsApp for Quote
Three-phase SPD

Three-phase SPD surge protection package

RM700 / package

For a suitable three-phase DB. Standard SPD materials, installation labour and basic operational testing included.

WhatsApp for Quote

Included in the standard package

  • Standard SPD device and installation materials
  • Installation labour
  • Connection inside a suitable existing DB
  • Basic operational and indicator testing

Confirmed before installation

  • Supply phase matches the selected package
  • Available DB and DIN rail space
  • Earthing and connection condition
  • Existing wiring and terminal condition

Separate quotation may be required

DB modification, a separate enclosure, damaged wiring or terminal repair, earthing repair, additional wiring, difficult access, premium devices or special protection requirements are outside the standard package.

WhatsApp request form

Request a detailed quotation.

Start with the service and area. Add only the details that help FastFix review the job.

Optional address and location detailsOptional

Add these now only if they are convenient. You can also share them later in WhatsApp.

This is a reference price only. FastFix confirms the final scope and price after reviewing the job details.

The existing DB decides the correct installation.

The correct SPD cannot be selected from price alone. FastFix checks the supply phase, available space, earthing arrangement and existing wiring condition before confirming the device and scope.

  • Supply phase matches the selected package
  • Available DB and DIN rail space
  • Earthing and connection condition
  • Existing wiring and terminal condition

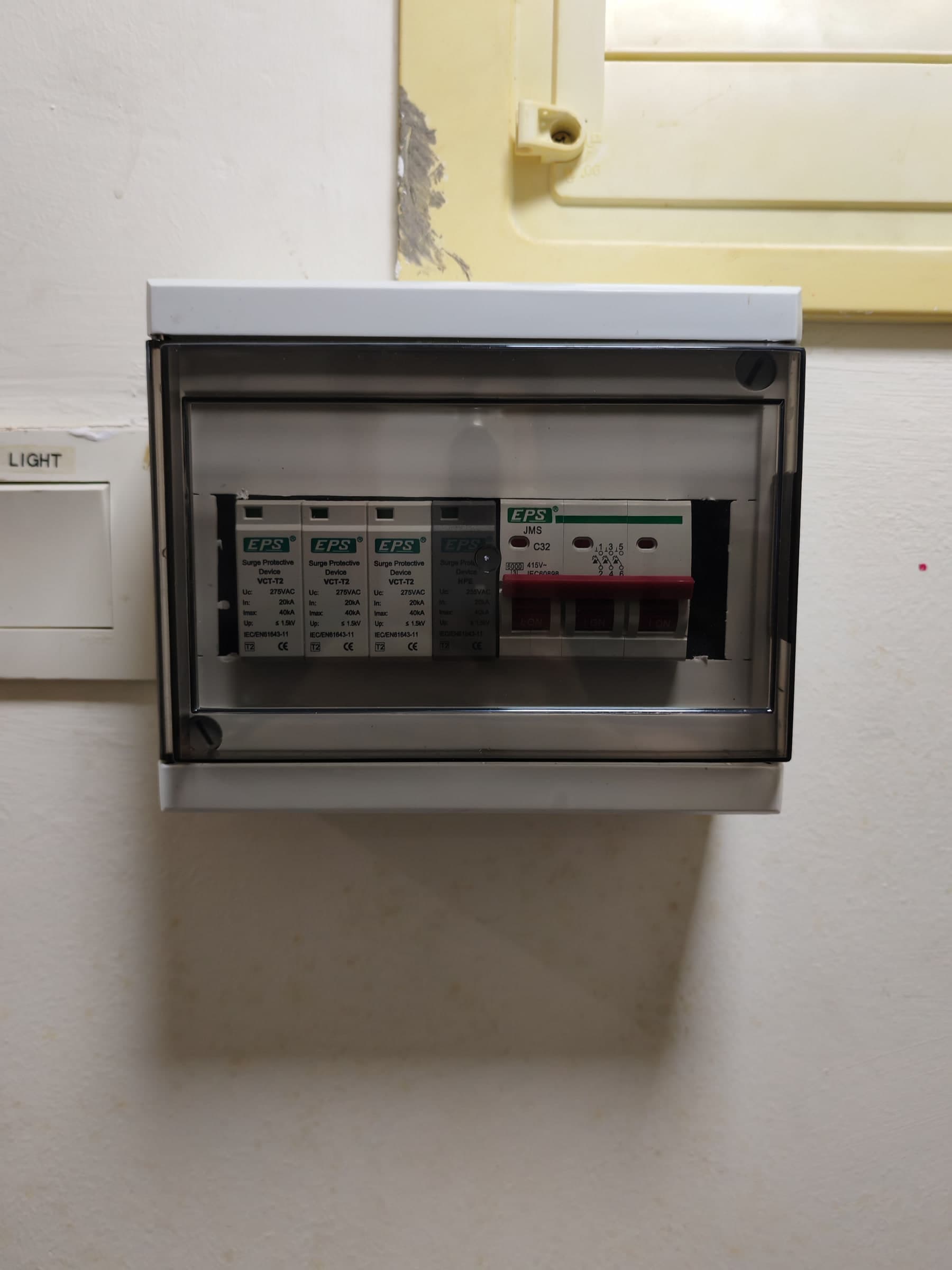

Completed FastFix SPD installation in a distribution board with its protective cover fitted.

SPD complements other protection. It does not replace it.

Each protective device has a different job in the electrical installation.

MCB
Protects against overcurrent and short-circuit conditions.
RCCB / ELCB
Provides leakage protection according to the confirmed installation specification.
Earthing
Provides the required protective path and must be in suitable condition.
Building lightning protection
A separate system may be required depending on the building and risk assessment.
An SPD helps reduce risk, but it cannot guarantee that every appliance will survive every surge or a direct lightning event.

SPD installation questions.

Do I still need SPD if I already have MCB and RCCB / ELCB?

They serve different purposes. MCB handles overcurrent, RCCB / ELCB handles leakage, while SPD limits transient overvoltage. One does not replace the others.

Is the package price final?

Each displayed price covers the matching single-phase or three-phase standard materials and installation package for a suitable existing DB. Any DB modification, wiring repair, earthing repair or additional work is explained before proceeding.

Can I choose the SPD type or rating myself?

The correct device must be confirmed after checking the supply phase, DB arrangement, earthing and existing installation. Customers do not need to select the specification themselves.

Will SPD stop all lightning damage?

No protection can promise that. SPD helps limit transient overvoltage and reduce risk, but the outcome depends on surge severity, earthing, installation design and other protection measures.

Does SPD need checking or replacement?

The status indicator should be checked periodically. Request an electrician inspection if it shows end-of-life, there is visible damage, or a significant electrical event has occurred.
